Sandboxes

About Sandboxes

Sandboxes provide time-boxed, ephemeral AWS Management Console environments that expire automatically. A sandbox’s permissions are defined by a template and can range from full administrator access to least-privileged roles, depending on need. When a sandbox’s duration ends, access is revoked and all resources created inside the sandbox are cleaned up automatically—no user action required.

Important

Sandboxes are not enabled by default. They require a signed agreement because they incur additional costs for your organization. To enable Sandboxes for your organization, please reach out to Support.

Note

AWS region: Sandboxes currently run in us-east-1 only. Additional regions can be added if needed.

Key Concepts

Concept	Description
Sandbox	A short-lived AWS environment defined by a sandbox.yml template. It grants time-boxed access and (optionally) provisions resources for hands-on work.
Type	The sandbox runtime. Two types are illustrated in the examples below: aws_cloud — console-first sessions that assume an AWS role defined by a policy (optionally orchestrated by an Infrastructure-as-Code engine). aws_ec2 — a session that provisions an EC2 instance with parameters like instance type, image, disk size, and connection mode (ssh or vnc).
Lifetime	The initial duration of the sandbox (e.g., 15m, 30m). Access and resources automatically expire at the end of the lifetime.
Lifetime Extension	Optional, on-demand increments (e.g., 5m, 10m) that can be applied to a running sandbox, up to lifetime_max.
Policy	The permissions definition attached to the sandbox (for example, an IAM policy file like lab.policy). This controls the permission level from full to least-privileged.
Provision Engine	The engine used to orchestrate resources defined by the sandbox (e.g., terraform, bash, or CloudFormation).
Billing Limit	A numeric cap used by the platform to help control costs attributed to the sandbox (e.g., 5.0).
Parameters	Resource-specific inputs for the sandbox type (for example, EC2 instance settings: instance_type, image, volume_size, connection_mode).
Region	The AWS region in which sandboxes are created. Currently fixed to us-east-1.
Prime	Optional pre-warming configuration for sandboxes. When enabled, the platform creates “primed” sandboxes ahead of time to reduce wait time for learners.

Lifecycle, Duration, and Cleanup

• Start: Launch a sandbox from a sandbox.yml template. The environment and its access are created for the configured lifetime.

• Extend: While running, you may extend the lifetime in lifetime_extension increments, not exceeding lifetime_max.

• Expire & Clean: When the lifetime ends, access is revoked and resources created by the sandbox are cleaned up automatically—no user action required.

Creating a Sandbox and a Collection

1. Select Sandboxes from the Build menu, if that option is not available, Sandboxes are not enabled for your organization.

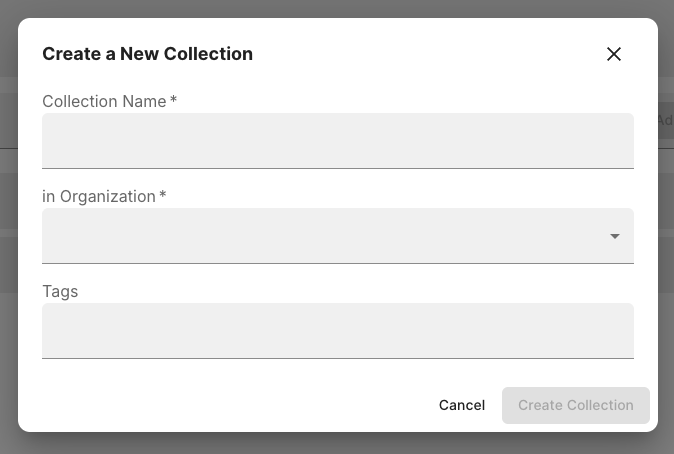

2. Then click the New Collection button in the top right. Give your collection a name and click Create Collection.

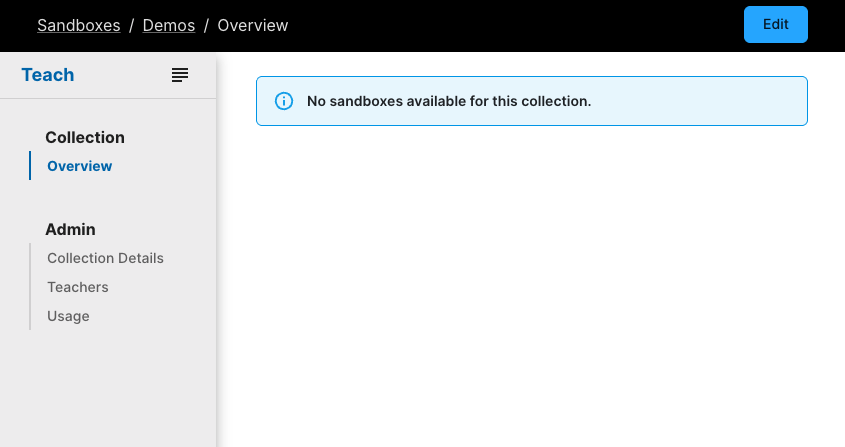

3. Once created, your new collection will open automatically. Click Edit to start creating sandboxes. The section below explains how to get started quickly.

Sandbox Configuration (sandbox.yml)

Define sandboxes in YAML, one sandbox per folder. The best starting point is using this command to get four working examples you can adapt:

git clone https://github.com/codio-content/sandboxes_examples.git .

Important

The command above will copy the repository to your current directory. Make sure your folder is empty.

Configuration Reference

Top-level keys

Key	Type	Required	Description
version	string	Yes	Schema version of the sandbox definition (e.g., "1.0" or 1.0).
type	enum	Yes	Sandbox runtime type. Supported in examples: aws_cloud or aws_ec2.
settings	mapping	Yes	Configuration block that defines lifetime behavior, permissions, provisioning engine, and resource parameters.
prime	mapping	No	Optional pre-warming configuration for any sandbox type. Supports priming continuously or on scheduled UTC start dates.

settings (common)

Key	Type	Required	Description
lifetime	string	Yes	Initial duration of the sandbox (e.g., "15m", "30m"). Sandboxes are ephemeral and expire after this time.
lifetime_extension	string	No	Increment applied when extending a running sandbox (e.g., "5m", "10m"). Extensions cannot push the total beyond lifetime_max.
lifetime_max	string	No	Maximum total runtime allowed for the sandbox (e.g., "20m", "60m"). Once reached, the sandbox cannot be extended further.
policy	string	Conditional	Path or reference to the IAM policy that defines the sandbox’s permissions. Controls access level from full to least-privileged.
provision_engine	string	Conditional	Infrastructure-as-Code engine used to orchestrate resources (e.g., terraform). Include when the sandbox provisions resources.
billing_limit	number	Optional	Organizational cost control value associated with the sandbox.
parameters	mapping	Conditional	Type-specific inputs. Required for aws_ec2 (see below).

settings.parameters for aws_ec2

After setting type to aws_ec2, configure the following parameters:

Key	Type	Required	Description
instance_type	string	Yes	EC2 instance type to provision (e.g., t3.medium). Supported instance types include: t3.nano t3.micro t3.small t3.medium t3.large t3.xlarge t3.2xlarge t3a.nano t3a.micro t3a.small t3a.medium t3a.large t3a.xlarge t3a.2xlarge c5a.large c5a.xlarge c5a.2xlarge c5a.4xlarge c5a.8xlarge c5a.12xlarge c5a.16xlarge c5a.24xlarge c6a.large c6a.xlarge c6a.2xlarge c6a.4xlarge c6a.8xlarge c6a.12xlarge c6a.16xlarge c6a.24xlarge g4dn.xlarge g4dn.2xlarge g4dn.4xlarge g4dn.8xlarge g4dn.16xlarge
image	string	Yes	AMI name or ID for the VM image. Examples: Ubuntu: codio-aws-ubuntu-base (or Ubuntu Codio AMI) Windows: codio-aws-windows-base (or Windows Codio AMI)
volume_size	integer (GB)	Yes	Root volume size in GiB for the instance (e.g., 30).
connection_mode	enum	Optional	Default access channel for the instance. Supported values in examples: ssh or vnc. If omitted, both connection modes are available.

prime (common)

Optionally prime (pre-warm) sandboxes to reduce learner wait time. Priming can be:

• Continuous: Maintain a steady pool of primed sandboxes.

• Date-based: Prime a specific number of sandboxes at specific UTC start times.

Note

For Continuous, sandboxes will start priming immediately after publishing the Collection. For Date-based this date specifies the time sandboxes will start priming, not when they will be ready.

Key	Type	Required	Description
type	enum	Yes	Priming mode. Supported values: continuous or date.
count	integer	Conditional	Required when prime.type is continuous. Number of primed sandboxes to keep available.
start_dates	list	Conditional	Required when prime.type is date. List of scheduled priming entries (UTC).
start_dates[].date	string (datetime, UTC)	Conditional	Required within each start_dates entry. Date/time (UTC) when priming should occur (e.g., 2025-11-24T11:40:00Z).
start_dates[].count	integer	Conditional	Required within each start_dates entry. Number of primed sandboxes to create at the scheduled date/time.

Permissions (Full to Least-Privileged)

Sandbox permissions are chosen by you via the attached policy:

• To grant broad administrative capabilities, point policy to an IAM policy that allows those actions.

• To enforce least-privileged access, supply a narrowly scoped policy granting only the minimum actions required.

This design lets you run anything from full AWS environments to tightly constrained labs, all with the same sandbox mechanism.

How can I create a policy?

Policies are an AWS concept. If you want to read more, please visit AWS’ guide to Policies and permissions and the IAM tutorial: Delegate access across AWS accounts using IAM roles.
